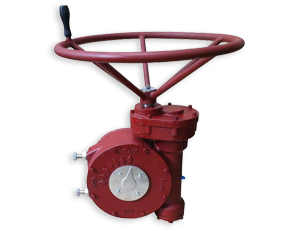

MY-4-1S double-stage ball valve butterfly valve gearbox

1.Product Introduction
MY series gearbox uses precision casting, with innovative appearance, precise selection of material, thus it has a longer service life than the ordinary gearbox.
2.Product Application
Suitable for quarter-turn valves like electric ball valves,butterfly valves, rotary valves and ventilation valves.Widely applies to petrochemical industries, electric power plant, water works, mining industry, HVAC equipment and most of the industries.
3.Product Features
a.MY series products have innovative design, flexible opening and closing, high efficiency, and long service life.
b.Protection level: normal products can reach up to IP 67, some can be up to IP68 or immersed according to requirements.
c.All the connection flanges adopt ISO5211 international standard.
d.Suitable environment: according to various environments, the media can use carbon steel, stainless steel, low temperature steel and other material boxes.
e.Torque scope: 1200~168400Nm.

Model		MY-0-1S	MY-1-1S	MY-2-1S	MY-3-1S	MY-4-1S	MY-4-1SZ	MY-5-1S	MY-5-1SZ	MY-6-1S	MY-6-1SZ	MY-7-1SZ	MY-8-1SZ	MV-9-1SZ	MY-10-1SZ
Technical-parameters
Ratio		72:1	85:1	122:1	150:1	150:1	194:1	186:1	273:1	201:1	295:1	1040:1	1248:1	2940:1	3275:1
Max-torque	N*m	1000	1850	3000	4500	6500	8000	14000	18000	22000	26000	40000	58000	140000	170000
Max-torque	kgf*m	102	188	306	408	663	816	1428	1836	2245	2653	4081	5918	14285	17346
M.A.±10%		14.4	17	24.4	30	30	35	37	55	40	59	208	225	529	589
Connection-size
FLANGE		F12	F14	F16	(F20)	F25	F25	F30	F30	F35	F35	F40	F48	F60	F60
Cylindrical flange(D)		150	175	210	250	300	300	350	350	415	415	475	560	686	686
PCD	DO	125	140	165	205	254	254	298	298	356	356	406	483	603	603
PCD	N-H-DP	4-M12 -18	4-M16 -24	4-M20 -30	8-M16 -24	8-M16 -24	8-M16 -24	8-M20 -30	8-M20 -30	8-M30 -45	8-M30 -45	8-M36 -54	12-M36 -54	20-M36 -54	20-M36 -54
Convex(D1×h)		85x3	100x4	130x5	140x5	200x5	200x5	230x5	230x5	260 x5	260x5	300 x8	370 x8	470x8	470x8
Max-Stem-Diameter(mm)		35 12x8	45 14x9	55 18x11	65 20x12	80 22x14	80 22x14	105 28x16	105 28x16	115 32x18	115 32x18	140 36x20	155 40x22	180 45x25	200 50x28

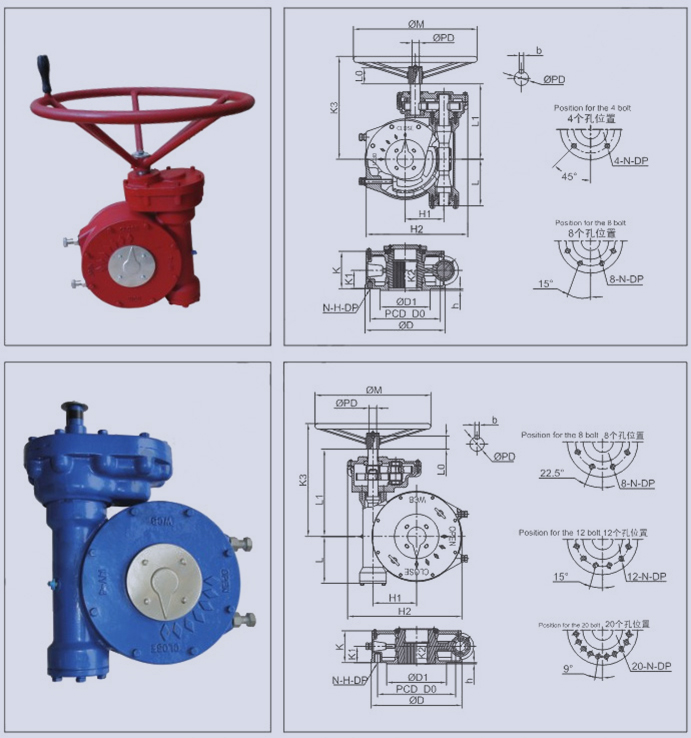

Appearance-size
H1		66	75	92	111	145	145	160	160	180	180	225	270	315	335
H2		196	221	283	322	388	388	404	404	510	510	582	670	740	765
K		89	89	108	110	140	140	140	140	179	179	188	203	230	240
K1		47	45	63	57	80	80	70	70	90	90	100	100	117	125
K2		47	58	62	60	100	100	102	102	112	112	140	155	176	200
K3		230	260	308	360	455	455	515	515	534	534	593	653	720	920
L		83	92	113	125	155	155	197	197	230	230	264	300	368	370
L1		161	170	198	211	260	295	294	325	338	359	413	453	520	655
handwheel	PD	21	21	21	28	28	28	28	28	28	28	38	45	45	45
	(b)key	6	6	6	8	8	8	8	8	8	8	10	12	12	12
	LO	30	35	35	40	40	40	40	40	40	40	50	50	50	50
	M	300	350	400	450	500	500	600	600	650	650	700	750	800	800
